A complex industrial steel detailing engagement covering multi-level structural framing, access platforms, stairways, and fabrication-ready documentation — modelled in full 3D using Tekla Structures and issued for fabrication.
8
Structural Assemblies
3
Drawing Types Issued
Tekla Structures
Modelling Software
Wood Processing
Project Sector

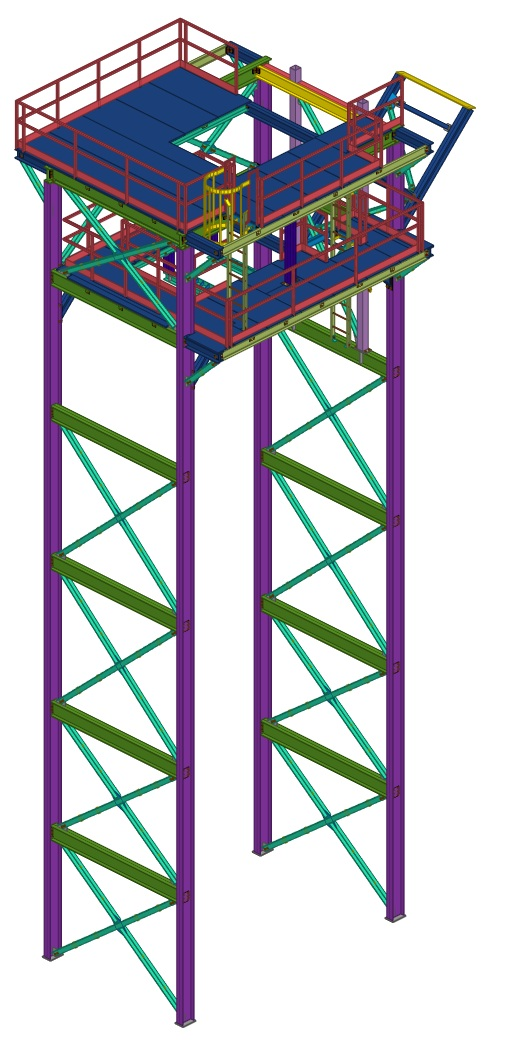

Multi-level tower assembly — structural framing, platforms, and diagonal bracing — click to enlarge
Project Overview
This engagement involved the complete structural steel detailing scope for a multi-level industrial wood-processing facility. AFAR Steel Detailing produced the full Tekla Structures model, coordinating structural framing, access platforms, stairways, ladders, grating, and handrail assemblies across the facility.
Every assembly was modelled to fabrication-ready precision — connection details, bolt patterns, material grades, and weld specifications were resolved in the model before shop drawings were issued. The result was a complete drawing package that went directly to the fabrication shop with minimal RFI activity.
The project reflects the depth of industrial detailing experience AFAR brings to complex, multi-discipline structural scopes — the kind of work where coordination, accuracy, and fabrication knowledge matter most.
Scope of Work
- Modelling SoftwareTekla Structures
- Structural ScopeMulti-level industrial framing

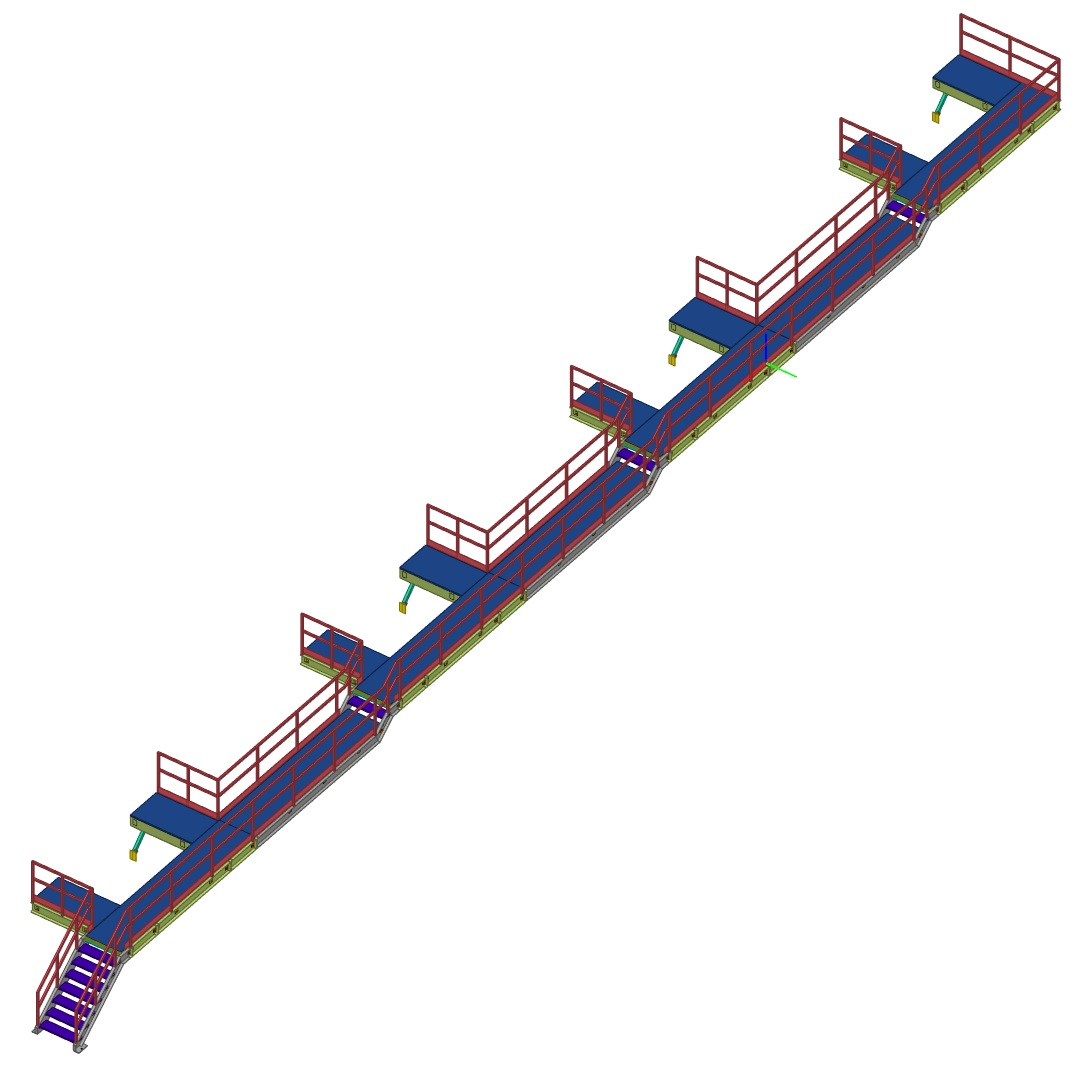

- Access StructuresPlatforms, stairways, caged ladders
- Miscellaneous SteelGrating, handrails, bracing
- Drawing TypesShop drawings, erection drawings, GA plans
- Issue StatusIssued for fabrication
- SectorIndustrial — wood processing
Capabilities Demonstrated
3D Structural Modelling
Full Tekla Structures model encompassing all structural members, connections, and miscellaneous steel — built to fabrication-ready precision.
Industrial Framing Systems
Multi-level structural framing with diagonal bracing, beam-to-column connections, and base plate details coordinated throughout.
Access & Safety Structures

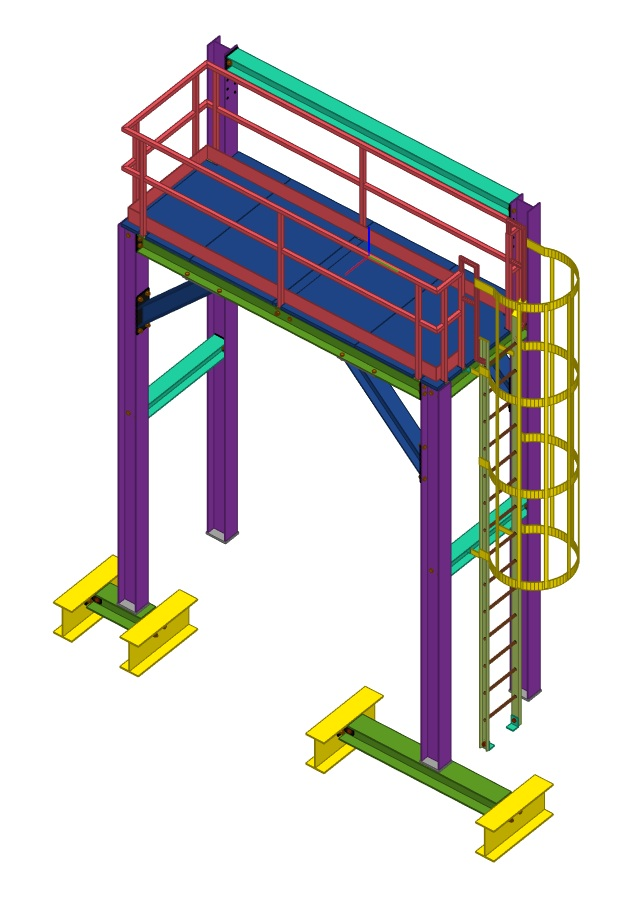

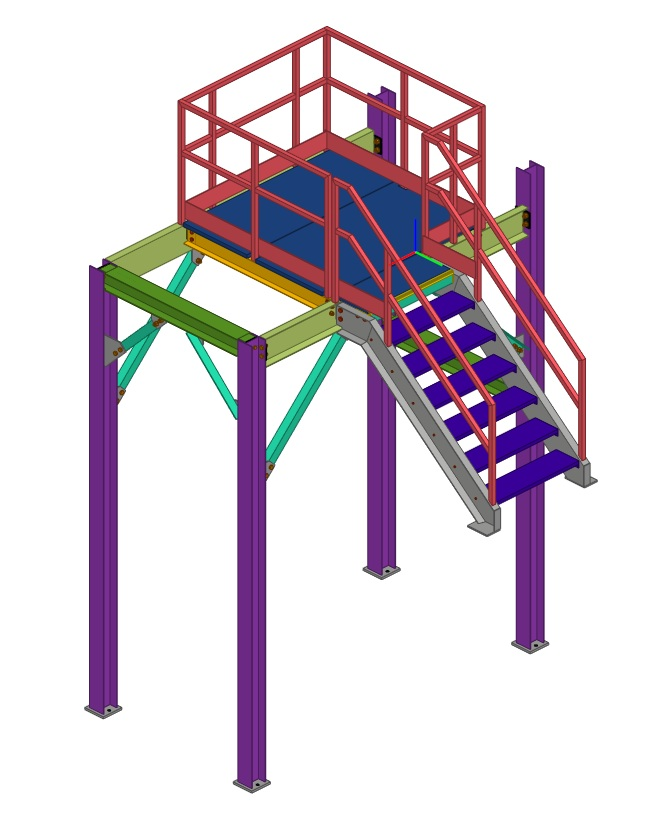

Platforms, stairways, caged vertical ladders, and guardrail systems detailed to code requirements and fabrication standards.
Shop Drawing Production

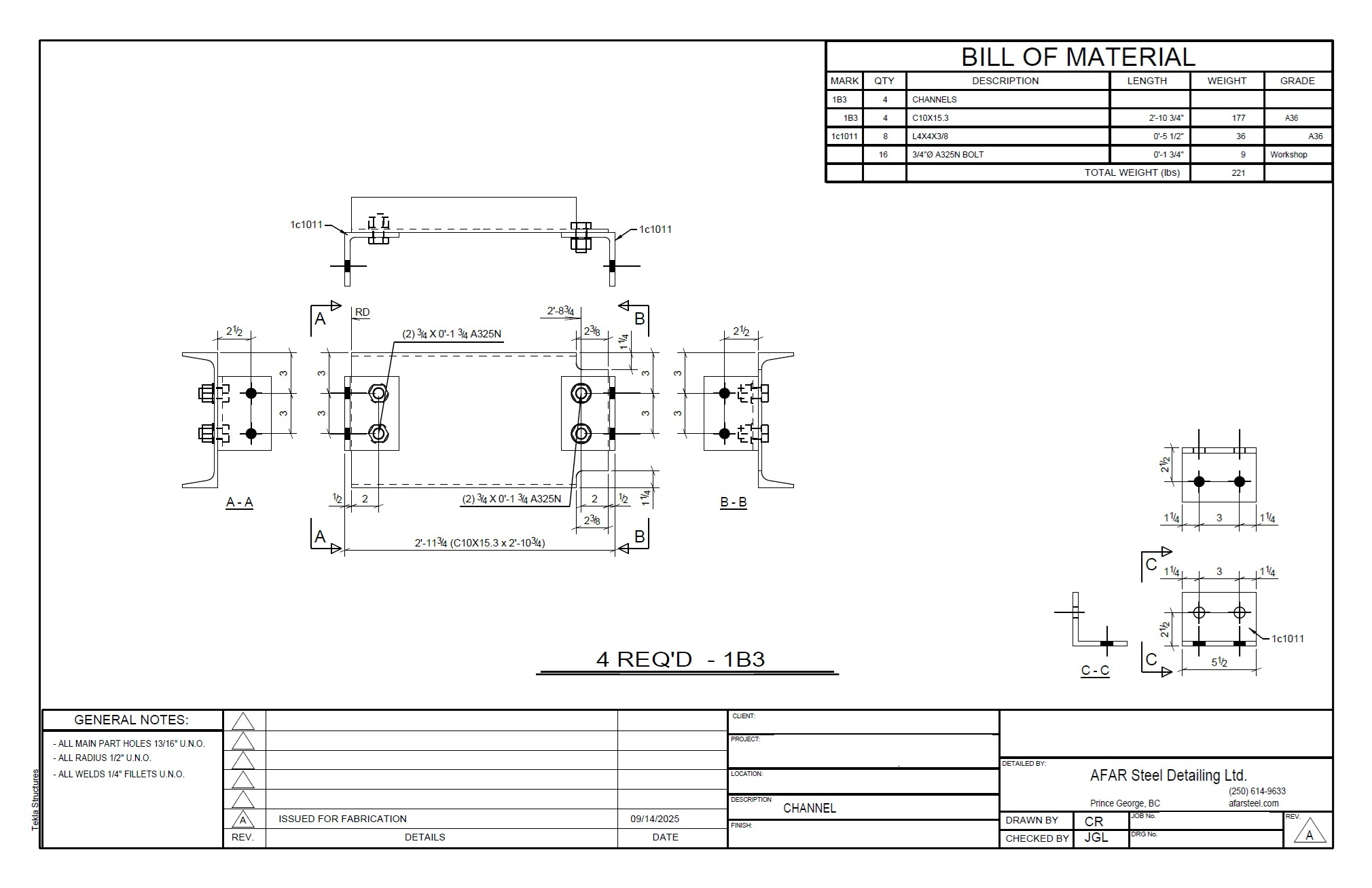

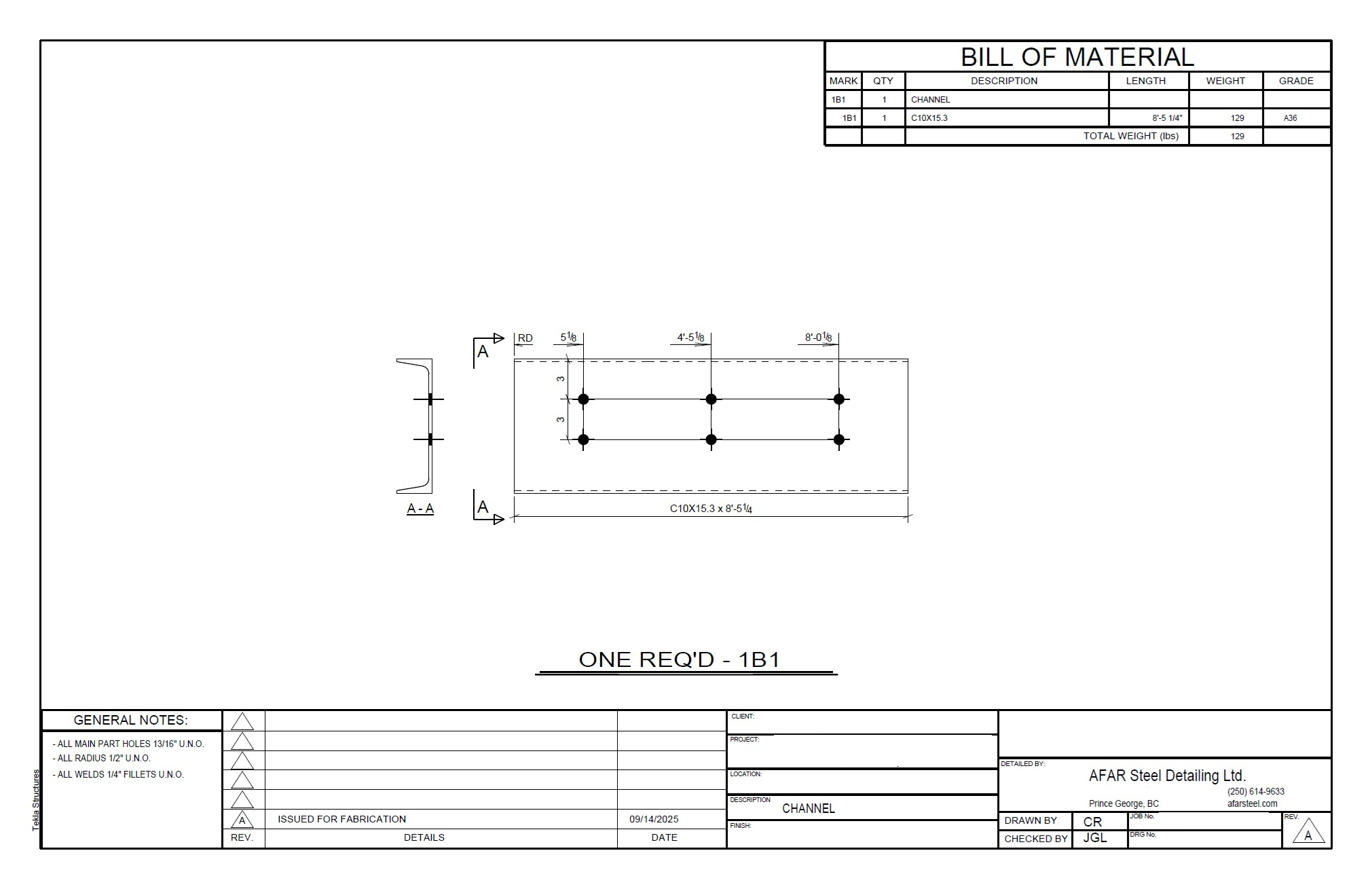

Complete fabrication drawing packages including member details, assembly drawings, bolt patterns, weld specifications, and bills of material.
Erection Documentation

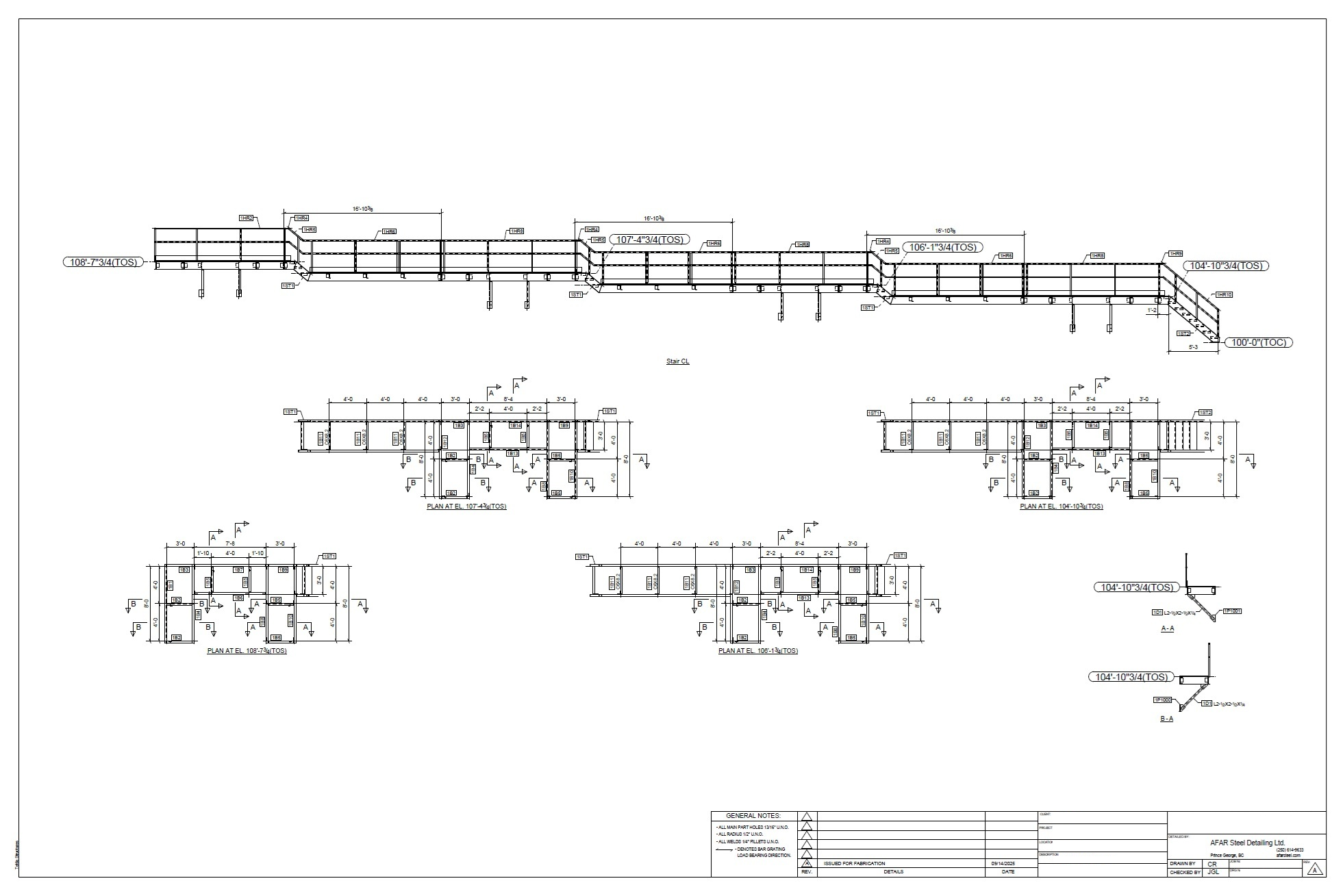

General arrangement drawings with multi-level plan views, elevations, and section cuts to support field erection and coordination.
Miscellaneous Steel Details

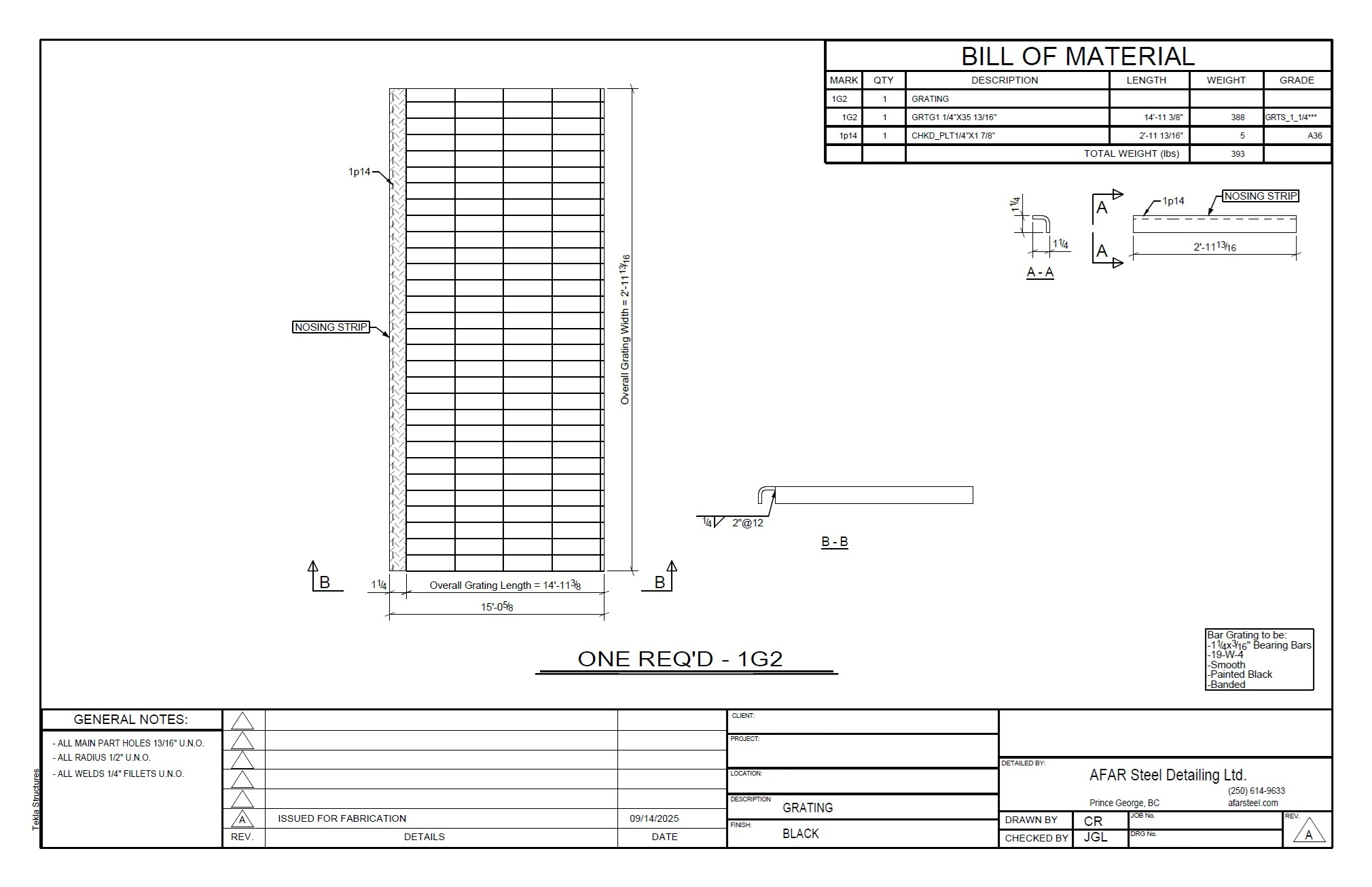

Grating panels, handrail assemblies, clip angles, and connection hardware detailed to the same fabrication-ready standard as primary structure.
